Buttons & Codes ​

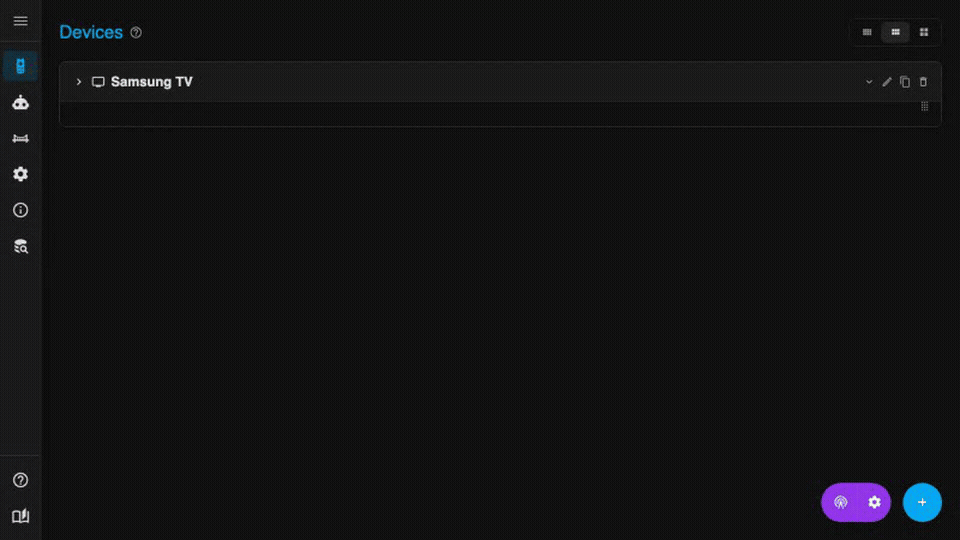

Buttons walkthrough: add, learn, send

Button Capabilities ​

Each button can be configured to perform different roles within the system.

  • Output (Send): Enables sending this IR code. In Home Assistant, this creates a button entity.
  • Input (Receive): Tracks the state of this button. In Home Assistant, this creates a binary_sensor. Modes include Momentary (on/off), Toggle (switch), and Timed (on for X seconds).
  • Event (Trigger): Fires a stateless event when the code is received. In Home Assistant, this is exposed as a device_automation trigger.

Interacting & Managing ​

  • Quick Send: Clicking on a button's icon (in both expanded and collapsed views) will immediately send the IR code. The command is sent to the bridges defined in the device's Target Bridges setting.
  • Editing & Reordering: Drag buttons to rearrange them. Hover over a button card to reveal edit, duplicate, and delete actions. Button names must be unique within a single device.

IR Codes & Learning ​

  • Learning Mode: Click the Learn button in the top bar to capture codes from a physical remote.
    • Simple: Captures the first valid signal.
    • Smart: Requires multiple presses to find the most consistent signal (filters out noise). Recommended for noisy environments.
  • Protocols: Supports standard protocols (NEC, Sony, Samsung, RC5/6) and RAW data.

Non-standard carrier frequencies

Some protocols (RC5, RC6 at 36 kHz — Sony at 40 kHz — Dish at 57.6 kHz) use a different carrier than the standard 38 kHz. A 38 kHz receiver module will pick up nearby frequencies with reduced sensitivity — try holding the remote closer. For protocols far outside that range, a matching receiver is needed. See the protocol frequency table.

Dish protocol

Dish uses a 56 kHz carrier frequency instead of the standard 38 kHz. Make sure your hardware supports it before trying to learn Dish codes.

  • RAW: Used for unknown protocols. Captured as a sequence of microsecond pulses. RAW codes are larger and slightly less reliable than decoded protocols — prefer a named protocol when available.
